CEIA SH2C/SLE
Dual-Color Compact Pyrometer for Measurement of metallic surfaces between 300°C and 2200°C
CEIA SH2C/SLE
Dual-Color Compact Pyrometer for Measurement of metallic surfaces between 300°C and 2200°C
- Temperature Range: Dual-color mode: 600 ÷ 2200 °C; Single-color mode: 300 ÷ 2200 °C
- High Accuracy
- High-Speed
- Compact design
- Available with different focus distance and aiming spot size
- LED aiming light
- Supplied with Calibration Report traceable to certified International Standards
- AISI 304 Stainless Steel Construction
Brochures
Manuals
The Thermal Profile System allows programming, quality certification and traceability of each thermal cycle. Up to 20 Programmable Temperature and Time Segments per Process; Up to 100 different storable processes; Maximum Power Output Programmable for Each Individual Segment; Temperature Tolerance Window Programmable for Each Individual Segment; Out-of Tolerance and End-of-Cycle Outputs for Each Process.
Along with the CEIA optical temperature sensors (SH/SLE series), the CEIA Controllers allow the implementation of efficient induction soldering systems and achievement of completely repeatable, economical heating processes and finished products: Master Controller v3 (Integrated Controller of Heating and Soldering Cycles); Power Controller v3 (Integrated Controller of Heating Cycles); Net Master Controller (Power Cube Generators Network Controller)

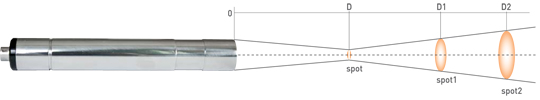

Model | Close-up lens | D Distance (mm) | Spot Diameter (mm) | D1 Distance1 (mm) | Spot 1 Diameter (mm) | D2 Distance2 (mm) | Spot 2 Diameter (mm) |
SH2C/SLE 300...2200°C | Included | 550 | 12.5 | 1000 | 36 | 2000 | 86 |
CL240/SH15 | 240 | 4.5 | 500 | 24 | 1000 | 63 |
CL120/SH15 | 120 | 2.5 | 250 | 19 | 500 | 52 |
CL60/SH15 | 60 | 0.5 | 150 | 18.5 | 300 | 51 |
| SH15/SLE |
Temperature range | 300...2200 °C (Single-color mode); 600...2200 °C (Dual-color mode) |
Temperature resolution | 0.1 °C (up to 999.9 °C) 1 °C (above 1000 °C) |
Emissivity range | 0.1-1.0 (Single-color mode); N/A (Dual-color mode) |
Response time | 100 uS Time Constant |
Measurement SpotAiming | High Definition, 620 nm wavelength led beam |
Internal digital controls | Offset and Range Calibration Parameters |
Environmental Temperature Measurement and Correction |
Automatic Gain Range Selection |
Compatible controllers | CEIA Power Controller v3, CEIA Master Controller v3, CEIA Net Master Controller |
Power Supply | +/-15 V - +10/-5 mA, directly supplied by CEIA Controllers |
Connection cable | 4.8 mm (diameter) - 1.5...4 m (length) |
Housing | AISI 304 Stainless Steel |
Weight | 100 g |
Housing Protection | IP65 |
Operating Temperature | 0°C...+65°C |
Storage Temperature | -25...+70°C |
Conformity | Complies with international standards currently applicable for Electrical Safety and Electromagnetic Compatibility (EMC) |
