INDUCTION Heating Systems
Power Cube Series 50 Generators
Medium Frequency Generators

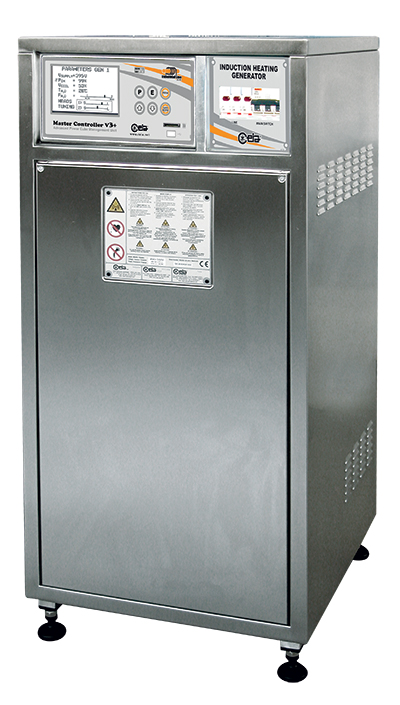

Power Cube Series 50 Generators
Medium Frequency Generators
- High Power output
- High level of performance with minimal operating costs
- Compact and integrable Heating Heads
- High Safety: all models output isolated from the mains
- Continuous generation
- Built-in Self-diagnosis
- Constant, repeatable power generation via microprocessor control
- Highly integrated with a small footprint
- State-of-the-art electronics
- Interfaces with CEIA Master Controller V3+ unit to manage heating cycles (temperature, time and power)
- Compliant with the Regulations on Electrical Safety and Electromagnetic Compatibility
Brochures
Manuals
The 50 series is the State-of-the-Art in Medium Frequency Generators available in the market. This family combine the miniaturized CEIA Heating Head solution (patented) with a powerful, continuous-duty rated generator with so high efficiency that it can replace traditional generators in applications up to double input power, thus cutting the initial investment and operating costs.
All the devices are solid-state technology manufactured and they are characterized by extremely compact dimen¬sions; an embedded microprocessor, besides to carry out a complete monitoring on the operating status of the devices and to give information on possible technical failures, guar¬antees the stabilization of the power output and the opti¬mum operating frequency.
All CEIA Power Cube Generators can be combined with the CEIA Master Controller V3+ unit. They can even be inter¬faced with PCs or programmable controllers via their analog and RS-232 interfaces.
The use of innovative technology and latest-generation components places the 50 series generators in a class of their own in terms of performance, power output and operational cost.
| | Power Cube 90/50 | Power Cube 180/50 | Power Cube 360/50 | Power Cube 720/50 |
| Input / Output | Maximum absorbed power | 6,0 kW | 12,0 kW | 24,0 kW | 48,0 kW |
| Average output power at inductor | 90 kVAR | 180 kVAR | 360 kVAR | 720 kVAR |
| Supply voltage | 400 Vac ±10% 3~ 50/60 Hz |
| Water cooling | pressure: 300 kPa - flow: 1,5 l/min | pressure: 300 kPa
flow: 2,0 l/min | pressure: 300 kPa
flow: 3,0 l/min |
| Operating Conditions | Operating temperature | +5 ÷ +55 °C |
| Storage temperature | -25 ÷ +70 °C |
| Relative humidity | 0 ÷ 95 % (without condensation) |
| Frequency range | 30 kHz...60 kHz |
| Dimensions | Generator | 195 x 304 x 426 mm | 490 x 496 x 768 mm | 600 x 650 x 1280 mm |
| Miniaturised heating head | 120 mm x 200 mm x 275 mm (HH13) | 177 mm x 234 x 332 mm (HH14) | 187 mm x 385 mm x 254 mm (HH16) |
| Standard inductor holder | 65 mm |
| Weight | Generator | 21 kg | 90 kg | 190 kg |
| Miniaturised heating head | 12 kg | 18,5 kg | 37 kg |
| Conformity | Complies with international standards currently applicable for Electrical Safety (EN 60204-1) and Electromagnetic Compatibility (EN 55011, EN 61000-6-2) |
