Distributeurs de fil de brasure

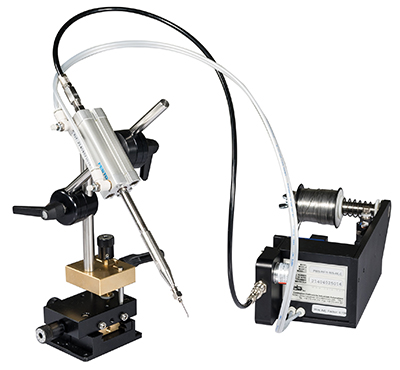

CEIA solder dispensers consist of a power motor unit, and an applicator with piston to approach the piece during the soldering process.
The two units are connected by a flexible sheath, so that the applicator can be easily fixed to the soldering workstation.
Main control Parameters:
- Quantity and speed of wire feeding
- Quantity and speed of wire rewind
- Activation time of alloy feeding
- Wire feeding motor torque
- Wire presence sensor
|Feed Quantity||0,0÷300,0 mm|
|Feed Rate||1÷99 mm/s|
|Rewind Length||0,0÷300,0 mm|
|Rewind Rate||1÷99 mm/s|
|Manual Feed Rate||1÷30 mm/s|
|Manual Rewind Rate||1÷30 mm/s|
|Cylinder Delay||0,0÷99,0 s|
|Max Current (Torque Control)||50÷300 mA|
WS = Wire Sensor
Compact Hall Effect Sensor to generate an alarm when the brazing coil ends. The WS Sensors is powered from the Master Controller unit, and the error message “no wire” is provided directly by the Master Controller as well (open collector output).
WLC = Wire Length Control
Additional Encoder mounted directly at the wire output to make sure that the correct wire length set is feed out even in case of slipping of the motor driving wheel.
PW3-WF/1.5-V2The new Wire Feeder, model PW3-WF / 1.5-V2, has been specially designed for dispensing silver alloy with a diameter of up to 1,6 mm. The model PW3-WF / STx.x-v2 is instead designed for the feeding of tin wire alloys, with diameter in the range of 0.8 ÷ 2.2 mm.
Small dimensions (the width is 95mm only) and low weight (3.6kg) make it easy to install the Feeder on automatic handling systems.
The dispensing nozzle can be mounted directly on the engine output, for a very compact installation, or through a flexible sheath.
The wire dragging system consists of two pairs of drive wheels, powered by a strong geared motor.
The drive wheels are easily and quickly replaceable; they are available either with a "V" groove for hard alloys (silver), and with a U profile for soft alloys (tin).
The Feeder also installs:
The powerful geared motor is also capable of working with very large and heavy reels (ie Ø 300mm, 12kg) to interlock automatic machines where a high degree of automation is required.
- A WLC (Wire Length Control) integrated encoder for an accurate, reliable and repeatable wire feeding.
- An easily adjustable pressure regulator with a large indicator to ensure the stability of the operating pressure even in the presence of pressure fluctuations on the compressed air line.
