Very compact and integrable Generators

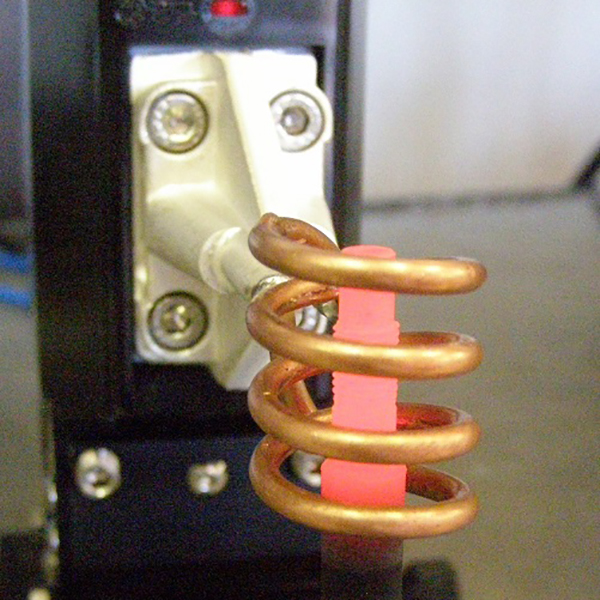

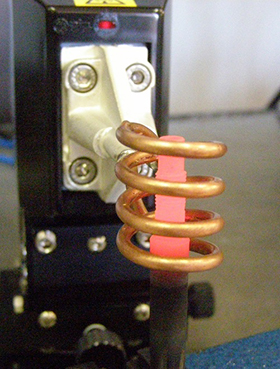

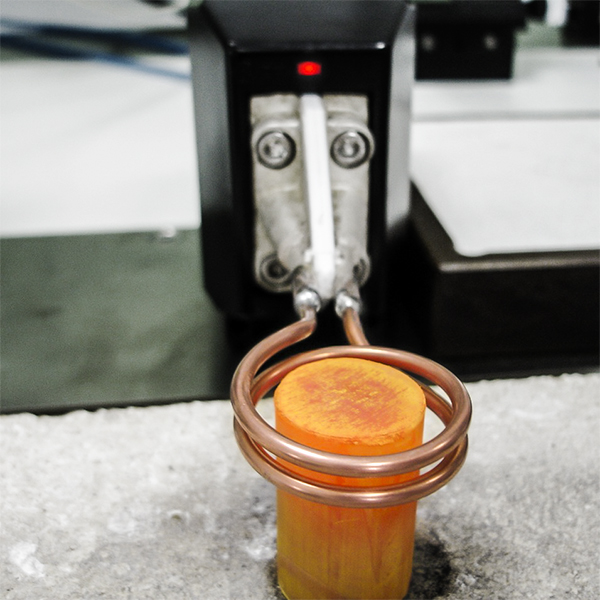

The Power Cube 400 HI-PE Series of High Frequency Generators includes two models with a power rating of 2.8 to 3.5kW. They combine the miniaturized CEIA Heating Head solution (patented) with a powerful, continuous-duty rated generator with so high efficiency that it can replace traditional generators in applications up to 12kW, thus cutting the initial investment and operating costs.These compact devices are manufactured using solid-state technology and each has an embedded microprocessor. This guarantees stable power output as well as optimum operating frequency. The microprocessor also performs monitoring and diagnostic functions to inform the user of device status.The generators have an ideal design for integration into automatic production systems. Space efficiency and simple operation also make these generators perfect for manual applications. All CEIA Power Cube Generators can be combined with the CEIA Master Controller V3+ unit. Each HI-PE Generator is accompanied by a calibration report that certifies the stability of the output voltage coming from the heating head.The use of innovative technology and latest-generation components makes the 400 Series Generators extremely advantageous in terms of performance, power output and operational cost.

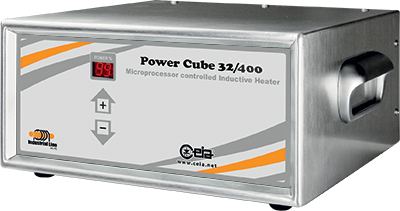

Power Cube 32/400Power Cube 45/400Power Supply and PowerInput current13A max - external conductors ø2.5 min.16A max - external conductors ø4 min.Average power at inductor32 kVAR45 kVARMaximum absorbed power2.8 kW3.5 kWSupply voltage180 ÷ 260 Vac, monophase - 50/60 HzFrequency Range375 kHz... 575 kHzCoolingWater coolingPressure: 300 kPaWater flow for each connected headFrom 1.5 to 2 l/minControl InputsRS232 serial interface1 RS232 asynchronous serial port for connection with external PLC or ControllerDigital input activator2 isolated digital inputs for the cycle activation switchesAnalogue power adjustment input2 analog inputs for output power control (optional)Operating ConditionsOperating temperature+ 5 °C to + 55 °CStorage temperature- 25 °C to + 70 °CRelative humidity20-95% (without condensation)Dimensions (WxDxH)Generator275 mm x 265 mm x 140 mm275 mm x 265 mm x 140 mmHeating head HH10/HH1162,5 mm x 123 mm x 95 mmm62,5 mm x 123 mm x 95 mmMiniaturized heating head HH1552 mm x 107 mm x 77 mm52 mm x 107 mm x 77 mmStandard inductor holder150 mm150 mmWeightGenerator10 kg10 kgHeating head2 kg2 kgConformityComplies with international standards currently applicable for Electrical Safety (EN 60204-1, EN 60519-1, EN 60519-3) and Electromagnetic Compatibility (EN 55011, EN 61000-6-2)
