  • Dual Alternate, high Power output
  • High level of performance with minimal operating costs
  • Very compact and integrable Generators
  • Miniaturized Heating Heads
  • High Safety: all models output isolated from the mains
  • Continuous generation
  • Built-in Self-diagnosis
  • Maintains stable and accurate output power even as working conditions change
  • Supplied with Calibration Certificate
  • Digital and analog control of the output power
  • Interfaces with CEIA Master Controller V3+ unit to manage heating cycles (temperature, time and power)
  • Compliant with the Regulations on Electrical Safety and Electromagnetic Compatibility


Manuals

Power Cube Series 900 Generators

Description

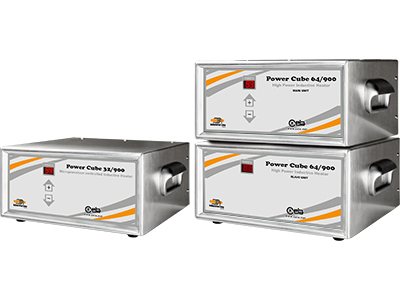

Power Cube Series 900 Generators - detail

Constant, repeatable power generation via microprocessor control

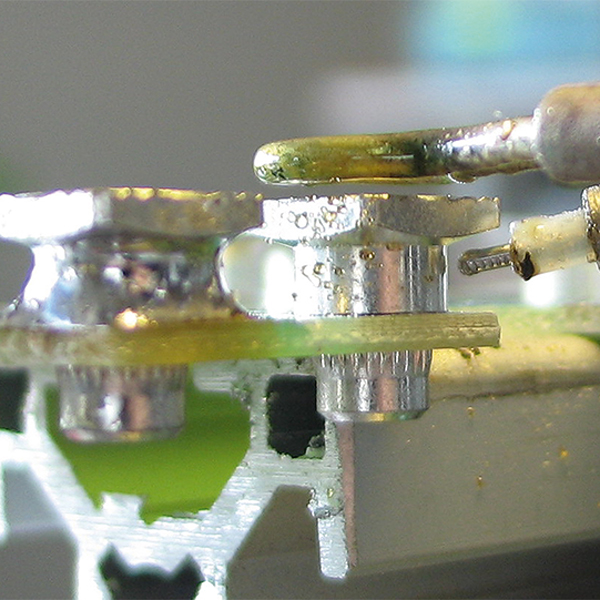

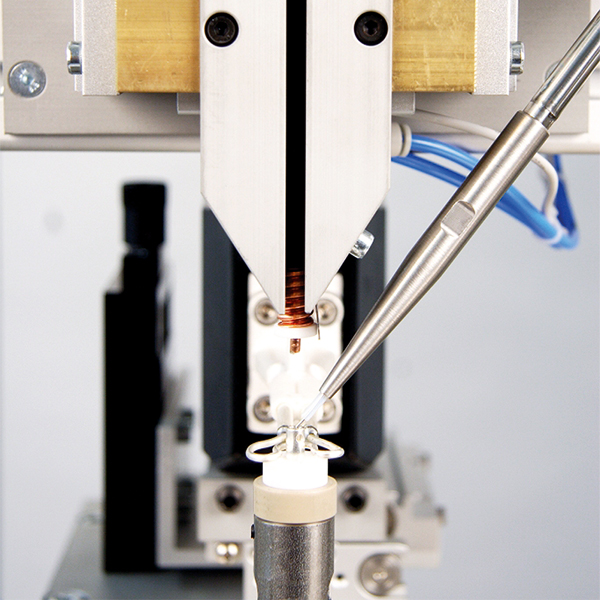

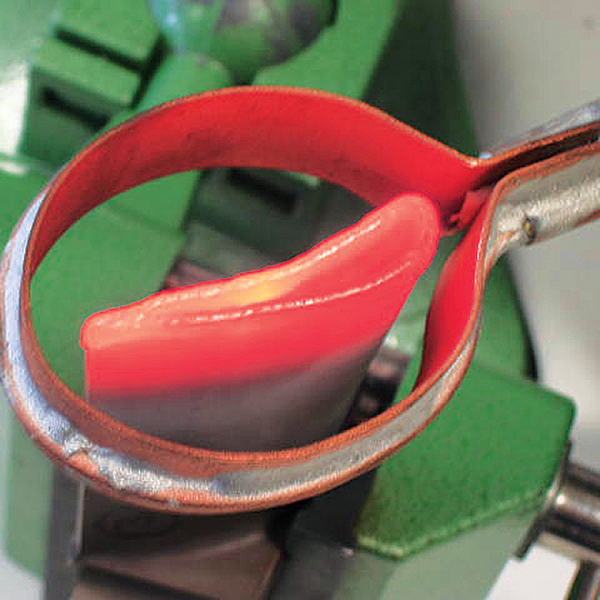

The Power Cube® 900 HI-PE series of High Frequency Generators spans five models with a power rating range of 2.8 to 6kW. They combine the miniaturized CEIA Heating Head solution (patented) with a powerful, continuous-duty rated generator with so high efficiency that it can replace traditional generators in applications up to 12kW, thus cutting the initial investment and operating costs.

These compact devices are manufactured using solid-state technology and each has an embedded microprocessor. This guarantees stable power output as well as optimum operating frequency. The microprocessor also performs monitoring and diagnostic functions to inform the user of device status.

The generators have an ideal design for integration into automatic production systems. Space efficiency and simple operation also make these generators perfect for manual applications. All CEIA Power Cube® Generators can be combined with the CEIA Master Controller V3+ unit.

They can even be interfaced with PCs or programmable controllers via their analog and RS-232 interfaces. Each HI-PE Generator is accompanied by a calibration report that certifies the stability of the output voltage coming from the heating head.

The use of innovative technology and latest-generation components places the 900 series generators in a class of their own in terms of performance, power output and operational cost.

Specifications

 Power Cube® 32/1800Power Cube® 32/900Power Cube® 45/900Power Cube® 64/900Power Cube® 90/900
Entradas / SalidasMáxima potencia absorbida2,8 kW2,8 kW3,5 kW5,6 kW6 kW
Potencia media en el inductor32 kVAR32 kVAR45 kVAR64 kVAR90 kVAR
Salidas disponiblesDos, activables en modo alternado
Tensión180... 260 Vac 1~ 50/60 Hz400 Vac ±10% 3/PE~ 50/60 Hz
Agua de enfriamientopresión: 300 kPa
caudal: 1,5 - 2 l/min por cada cabezal conectado
Presión: 300 kPa
Caudal: 4.0 - 5.0 l/min por cada cabezal conectado
Entradas / Salidas de InterfazSerial RS-232Estándar
Entrada digital de activación2, una por cada cabezal de calentamiento
Entrada analógica para la regualación de la potenciaAccesorio opcional, bajo pedidoEstándar
Condiciones OperativasTemperatura de trabajo+5 ÷ +55 °C
Temperatura de almacenaje-25 ÷ +70 °C
Humedad relativa0 ÷ 95 % (Sin condensación)
Rango de Frecuencias1300 kHz...1800 kHz750 kHz...1150 kHz
Dimensiones (AxPxH)Generador275 x 265 x 140 mm275 x 265 x 280 mm445 x 287 x 132 mm
Cabezal de calentamiento62,5 x 123 x 95 mm (HH10)
52 x 75,5 x 77 mm (HH15)
62,5 x 123 x 95 mm (HH10)
Inductor estándar100 mm150 mm65 mm
PesoGenerador10 kg20 kg
Cabezal de calentamiento1,3 kg (HH15) - 1,6 kg (HH10) 2,2 kg (HH11)3 kg (HH12)
ConformidadConforme con las normas internacionales para la seguridad eléctrica (EN 60204-1, EN 60519-1, EN 60519-3) y la compatibilidad electromagnética (EN 61000-6-2, EN 61000-6-4)
