  • High Power output
  • High level of performance with minimal operating costs
  • Compact and integrable Heating Heads
  • High Safety: all models output isolated from the mains
  • Continuous generation
  • Built-in Self-diagnosis
  • Constant, repeatable power generation via microprocessor control
  • Highly integrated with a small footprint
  • State-of-the-art electronics
  • Interfaces with CEIA Master Controller V3+ unit to manage heating cycles (temperature, time and power)
  • Compliant with the Regulations on Electrical Safety and Electromagnetic Compatibility

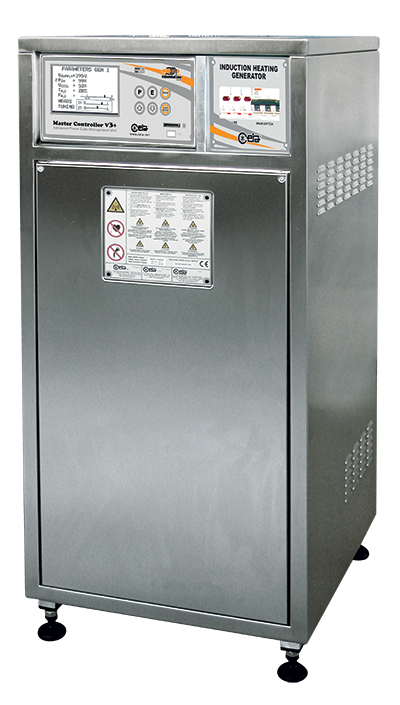

Power Cube Series 50 Generators


Power Cube Series 50 Generators - detail

The Power Cube® 50 series is the State-of-the-Art in Medium Frequency Generators available in the market. This family combine the miniaturized CEIA Heating Head solution (patented) with a powerful, continuous-duty rated generator with so high efficiency that it can replace traditional generators in applications up to double input power, thus cutting the initial investment and operating costs.

All the devices are solid-state technology manufactured and they are characterized by extremely compact dimensions; an embedded microprocessor, besides to carry out a complete monitoring on the operating status of the devices and to give information on possible technical failures, guarantees the stabilization of the power output and the optimum operating frequency.

The generators have an ideal design for integration into automatic production systems. Space efficiency and simple operation also make these generators perfect for manual applications.

All CEIA Power Cube® Generators can be combined with the CEIA Master Controller V3+ unit. They can even be interfaced with PCs or programmable controllers via their analog and RS-232 interfaces.

The use of innovative technology and latest-generation components places the 50 series generators in a class of their own in terms of performance, power output and operational cost.


 Power Cube® 90/50Power Cube® 180/50Power Cube® 360/50Power Cube® 720/50
Input / OutputMaximum absorbed power6,0 kW12,0 kW24,0 kW48,0 kW
Average output power at inductor90 kVAR180 kVAR360 kVAR720 kVAR
Supply voltage400 Vac ±10% 3~ 50/60 Hz
Water coolingpressure: 300 kPa - flow: 1,5 l/minpressure: 300 kPa
flow: 2,0 l/min
pressure: 300 kPa
flow: 3,0 l/min
Operating ConditionsOperating temperature+5 ÷ +55 °C
Storage temperature-25 ÷ +70 °C
Relative humidity0 ÷ 95 % (without condensation)
Frequency range30 kHz...60 kHz
DimensionsGenerator195 x 304 x 426 mm490 x 496 x 768 mm600 x 650 x 1280 mm
Miniaturised heating head120 mm x 200 mm x 275 mm (HH13)177 mm x 234 x 332 mm (HH14)187 mm x 385 mm x 254 mm (HH16)
Standard inductor holder65 mm
WeightGenerator21 kg90 kg190 kg
Miniaturised heating head12 kg18,5 kg37 kg
ConformityComplies with international standards currently applicable for Electrical Safety (EN 60204-1) and Electromagnetic Compatibility (EN 55011, EN 61000-6-2)
